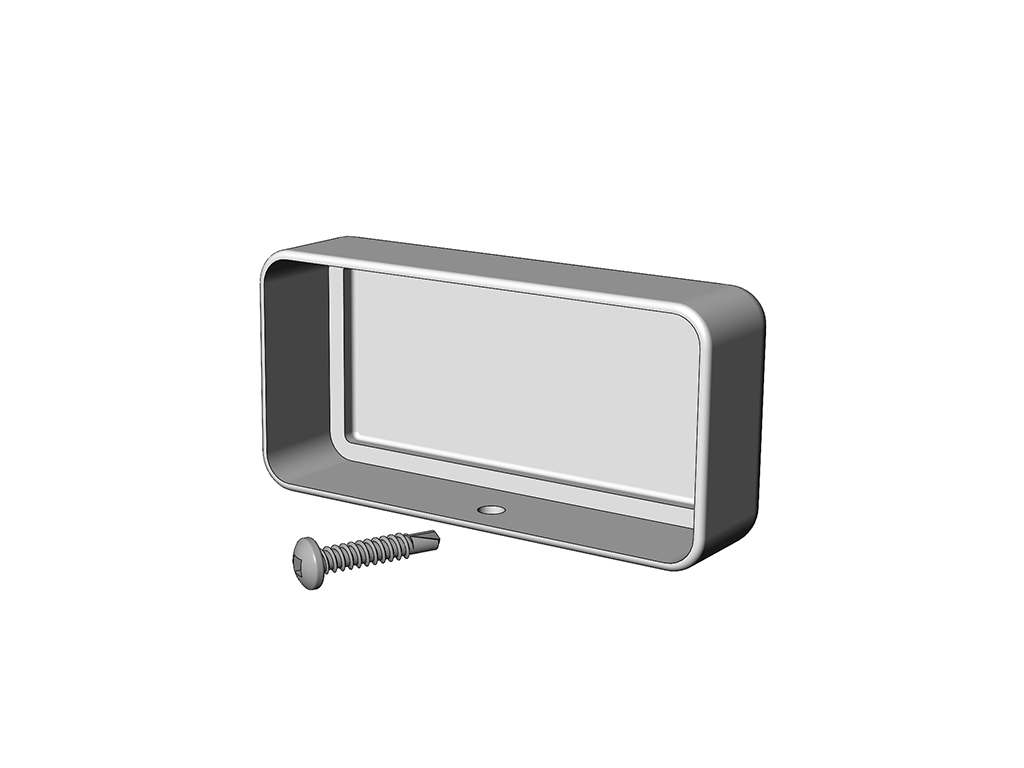

ORION Rail Cap
The ORION Rail Cap is installed on the exposed end of a top rail that extends beyond the post for a finished look. It features a female connection to allow for the ORION top rail to be cut to length and concealed within the cap. This rail cap is available in black, bronze and white colors and a matte textured finish. CLICK HERE to view the color chart. For use with Orion posts only.
MATERIAL: Aluminum
| ITEM | A | B | C | D | E | COLOR | X (height) | Y (length) | Z (width) | WT (lb) |
| A0907-AR75-BK | 3.53″ | 1.65″ | 0.75″ | 0.32″ | 0.20″ | Black | 1.78″ | 3.66″ | 1.00″ | 0.14 |
| A0907-AR75-BZ | 3.53″ | 1.65″ | 0.75″ | 0.32″ | 0.20″ | Bronze | 1.78″ | 3.66″ | 1.00″ | 0.14 |
| A0907-AR75-WH | 3.53″ | 1.65″ | 0.75″ | 0.32″ | 0.20″ | White | 1.78″ | 3.66″ | 1.00″ | 0.14 |
