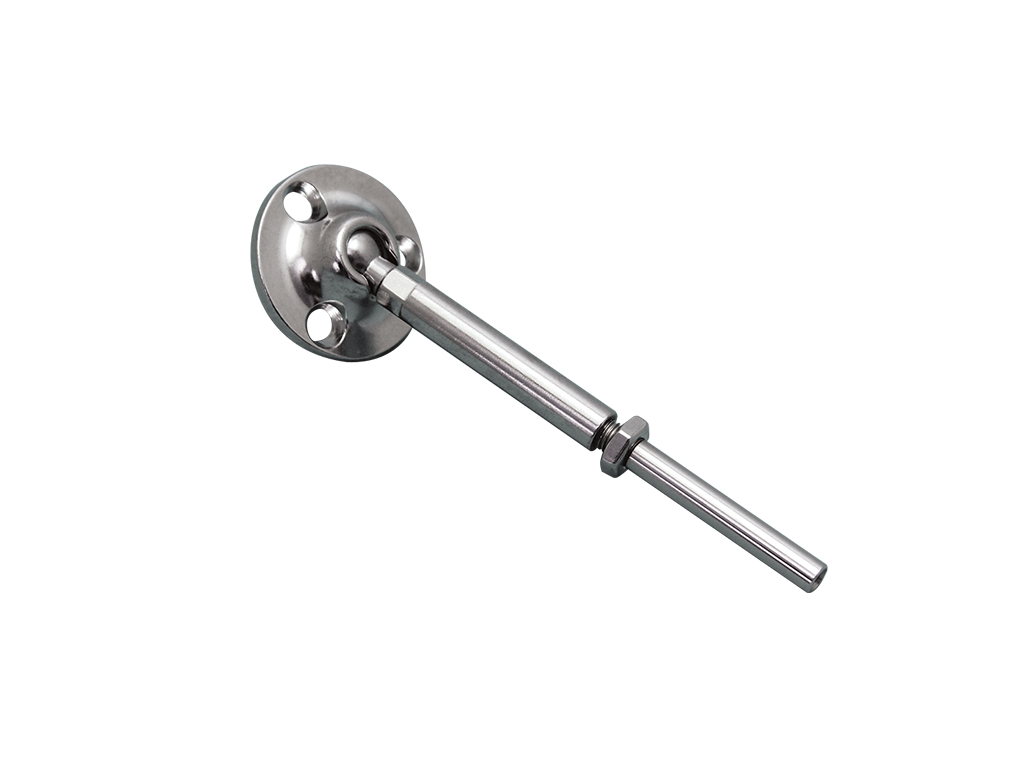

HandiSwage™ Tensioner w/Stud
The HandiSwage™ Tensioner with Stud is used in architectural cable railing applications. This tensioner is made from grade 316L stainless steel for corrosion resistance and durability. It features a slotted base to achieve angles up to 45 degrees. It can accept an 1/8″ cable diameter. The stud allows for crimping with a hand swager. Designed for hand swage use only. Fasteners included.
GRADE: 316L Stainless Steel
| ITEM | A (CABLE) | B | C | D | ADJ | QTY | WT (LB) |
| 2-Pack | |||||||
| C0748-H003-2 | 1/8˝ | 6.12″ | 0.78˝ | 0.90˝ | 1.35˝ | 2 | 0.14 |
| C0748-H004-2 | 5/32″ | 6.12″ | 0.78˝ | 0.90˝ | 1.35˝ | 2 | 0.14 |
| C0748-H005-2 | 3/16″ | 6.12″ | 0.78˝ | 0.90˝ | 1.35˝ | 2 | 0.14 |
